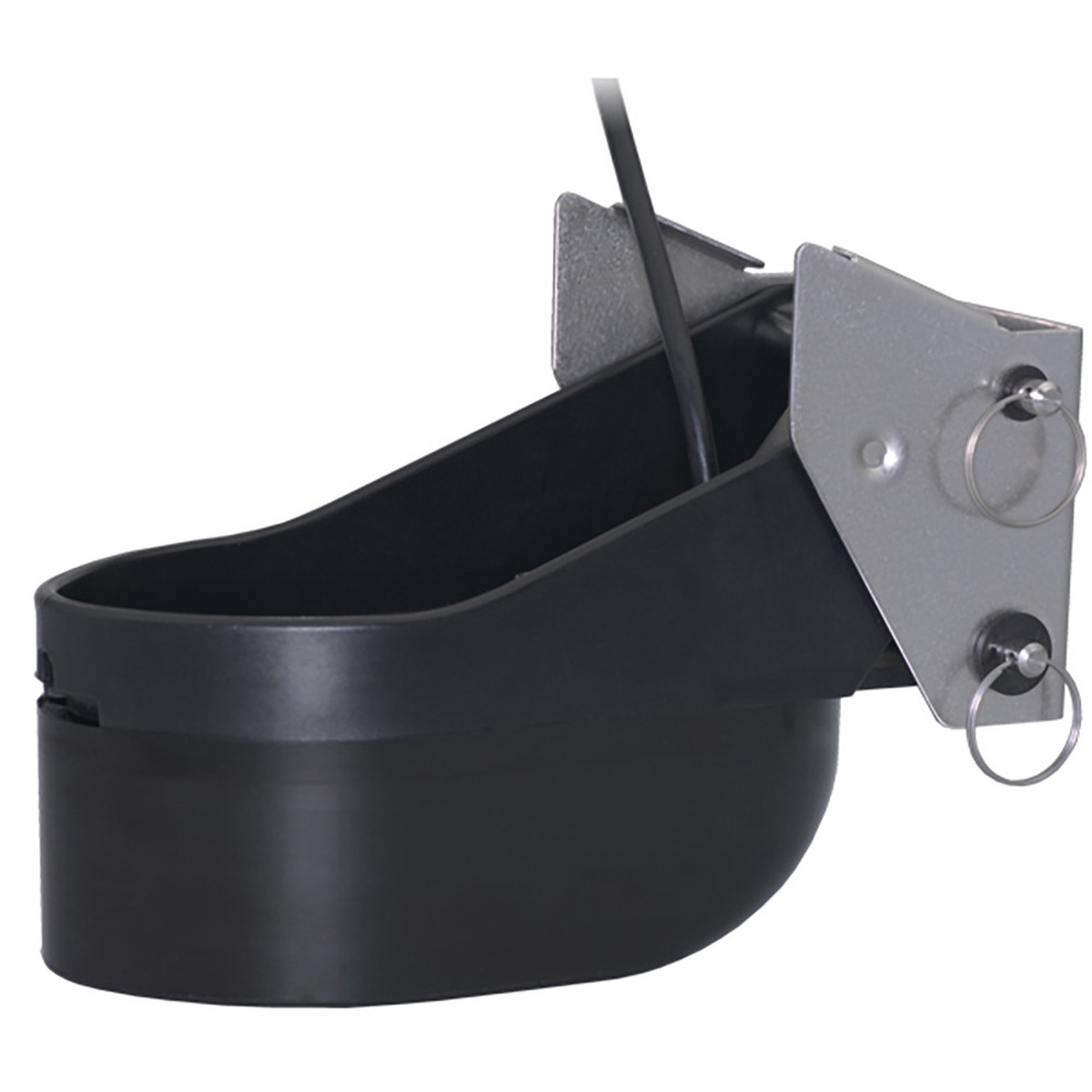

TM260 1kW Transom Mount Transducer w/Humminbird 14-Pin PlugPowerful, Yet Sensitive! The TM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line, broadband, transom-mount brings crystal clear imaging to any of today’s fishfinders. The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).Features:Top-of-the-line narrow-beam transom-mountDesigned for bottom fishingWide 19 beam at 50 kHzNarrow 6 beam at 200 kHzInterfaces to any 600W or 1 kW sounderDepth and fast-response water-temperature sensorKick-up assembly locks in the “up” position and will not damage the transomAccommodates transom angles between 3 and 21Urethane housingBoat Size: Up to 12M (40′)Specifications:Weight: 4 kg (8.9 lb)Hull Deadrise: Up to 28Acoustic Window: UrethaneThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:Temperature: YesPins: 14Mounting Style: TransomQuick Guide (pdf)Owner’s Manual (pdf)Brochure (pdf)
