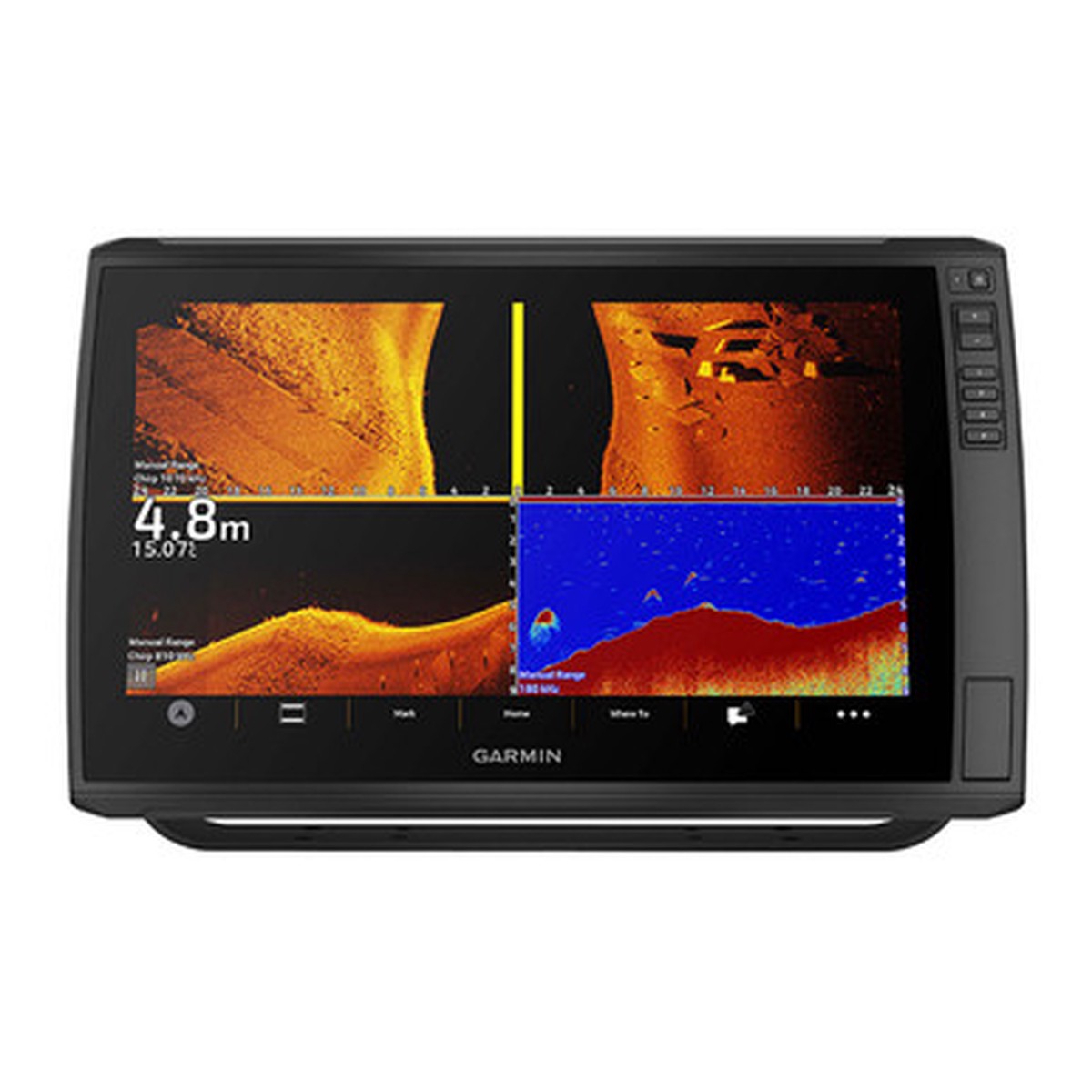

Product Details The Garmin ECHOMAP Ultra 2 162sv gives anglers a full 16 inches of high-definition sonar and mapping detail, built to handle the demands of advanced on-the-water navigation and fish-finding. This high-performance unit supports the complete lineup of Garmin LiveScope live-scanning sonars, Ultra High-Definition ClearV and SideV scanning, and CHIRP traditional sonar. Select models include the GT56UHD-TM transducer to unlock photo-like sonar detail right out of the box, while others are offered without a transducer for anglers with existing setups. One year of Garmin Navionics+ mapping with depth shading and daily updates is preloaded on specific units, and both versions feature HDMI output, vivid color palettes, Bluetooth voice control, wireless networking, and multi-band GPS. From full LiveScope support to seamless integration with Force trolling motors and NMEA 2000 devices, this unit delivers the tools needed to cover more water with precision and confidence. Available with or without GT56UHD-TM transducer Full HD 16 in. touchscreen display with keyed assist Supports LiveScope, CHIRP, UHD ClearV, and SideV sonar Preloaded Garmin Navionics+ maps on select models (1-year subscription included) HDMI output, wireless networking, and Bluetooth voice command support Multi-band GPS and NMEA 2000 compatible with Force motor integration Manufacturer’s two-year limited warranty General: Dimensions: 16.9″ x 10.5″ x 3.14″ (43.0 x 26.6 x 8.0 cm) Weight: 9.5 lbs (4.31 kg) Water rating: IPX7 Touchscreen: Yes Type: FHD, IPS Size: 13.6″ x 7.7″; 15.6″ diagonal (34.5 x 19.5 cm; 39.7 cm diagonal) Resolution: 1920 x 1080 pixels Mounting Options: Bail or flush Input: Touchscreen with Keyed Assist Maps & Memory Accepts Data Cards: 2 microSD cards Waypoints: 5000 Track Points: 50,000 Tracks: 50 saved tracks Navigation Routes: 100 Sensors GPS: Yes GLONASS: Yes Galileo: Yes Beidou: Yes Built-in Receiver: Yes Receiver: 10 Hz NMEA 2000 Compatible: Yes NMEA 0183 Compatible: Yes Supports WAAS: Yes Supports Multi-band, Multi-constellation GPS: Yes Built-in Maps Auto Guidance+: Yes Garmin Navionics+ Inland & Coastal: Yes Tide Tables: Yes Optional Map Support BlueChart g3: Yes BlueChart g3 Vision: Yes LakeV g3: Yes LakeV g3 Ultra: Yes Garmin Navionics+: Yes Garmin Navionics Vision+: Yes TOPO 100K: Yes Standard Mapping: Yes Garmin Quickdraw Contours: Yes Chartplotter Features AIS: Yes DSC: Yes Fusion-Link Compatible Radios: Yes ActiveCaptain Compatible: Yes Supports Voice Commands: Yes Sailing Features: Yes Electrical Features Power Input: 9 to 18 Vdc Typical Current Draw @ 12 Vdc: 3.9 A Max Current Draw @ 12 Vdc: 6.6 A Max Power Usage @ 10 Vdc: 48W Sonar Features Displays Sonar: Yes Power Output: 600 W Traditional Sonar: Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) ClearV: Built-in 260/455/800/1000/1200 kHz SideV: Built-in 260/455/800/1000/1200 kHz Panoptix: Yes LiveScope: Yes Connections NMEA 2000 Ports: 1 Video Output: 1 HDMI Garmin Marine Network Ports: 2 (large connector) 12-Pin Transducer Ports: 12-pin scanning sonar Bluetooth Pairing: Yes ANT+ Connectivity: Yes Garmin Wi-Fi Network: Yes In the Box (With Transducer) Part # 010-03385-01 ECHOMAP Ultra 162sv with optional Garmin Navionics+ GT56UHD-TM transducer Power cable Bail mount kit with knobs Protective sun cover Trim caps Hardware Documentation In the Box (Without Transducer) Part # 010-03385-00 ECHOMAP Ultra166sv with optional Garmin Navionics+ Power cable Bail mount kit with knobs Protective sun cover Trim caps 8-pin transducer to 12-pin sounder adapter cable Hardware Documentation This item does not qualify for expedited shipping. Prop 65 Warning FishUSA Customer Reviews Be the first to write a review Write a Review
