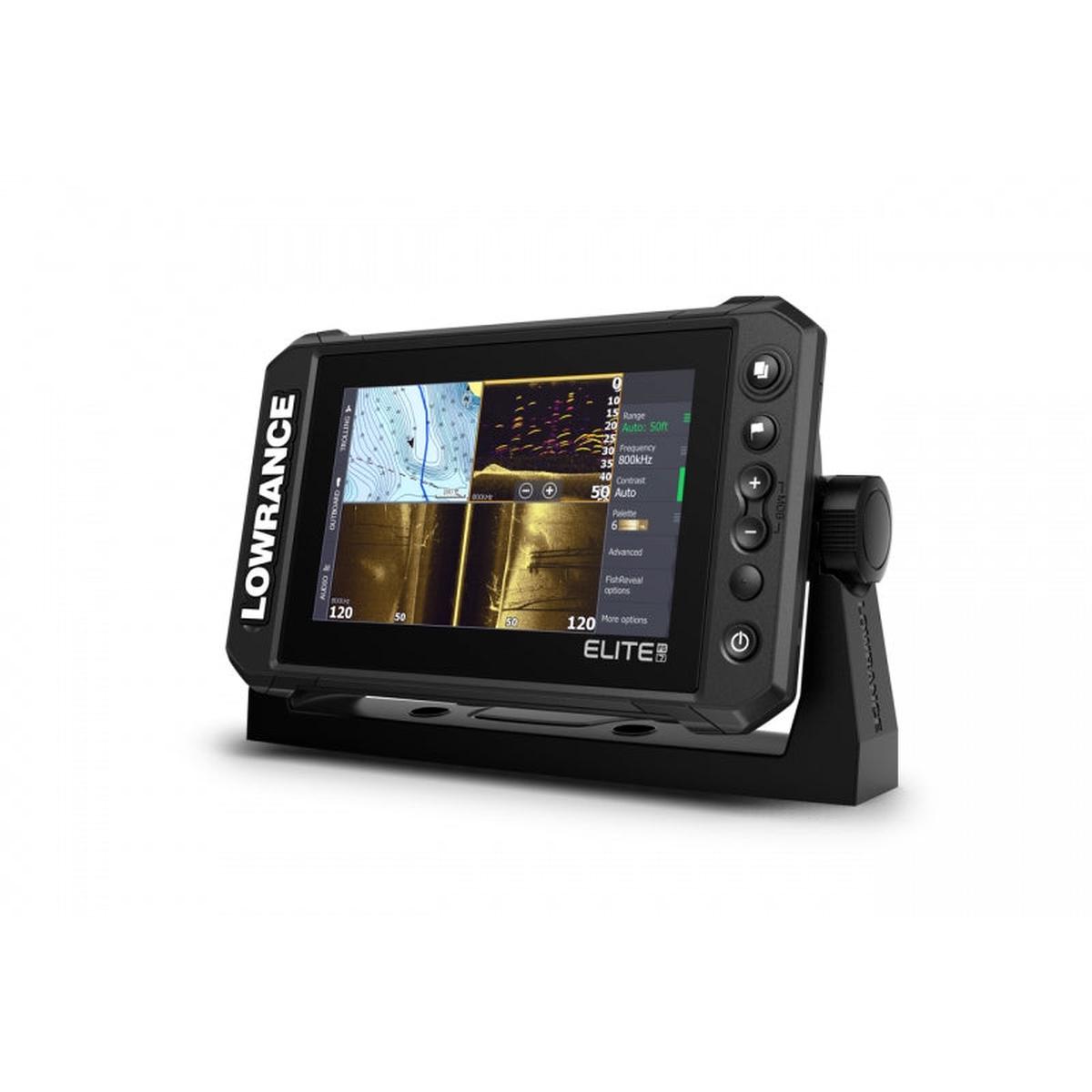

Lowrance ELITE FS 7 Active Imaging 3-in-1

Sale!
Lowrance ELITE FS 7 Active Imaging 3-in-1

Lowrance ELITE FS 7 Active Imaging 3-in-1

Price
Original price was: $1,384.61.Current price is: $149.00.
Category
SKUGCWU961591836399
Free shipping over $40 Calculated automatically
Reliable delivery Tracking provided when shipped
Easy returns View return policy
Secure payment Your payment details are protected

ELITE Fishing System tika izstrdta, lai nodrointu patrtjus ar labkm Lowrance funkcijm.Active Target rel laika sonra atbalsts, pilnga tkla iespjas, jauns diazains un uzlabots daudzfunkcionls displejs.

Galvens iezmes un funkcijas:

  • Jaunums – Active Target rel laika sonra atbalsts
  • Viegli lietojams daudzfunkcionls skrienjtgs displejs
  • Active Imaging sonra atbalsts (CHIRP, SideScan un Down)
  • FishReveal Smart mra skats
  • C-MAP Easy Routing + Navionics automarrutanas iespjas
  • C-MAP Genesis Live rel laika kartogrfija
  • GHOST un MotorGuide Xi5 Trolling motora integrcija
  • Power-Pole seklo deu enkuroanas sistmas vadba
  • Dzinju integrcija un autopilota kontrole
  • Ethernet tkls
  • Bezvadu savienojums
  • Viedtlrua paziojumi
ELITE FS 7 with Active Imaging 3-in-1 Transducer (ROW)
The new Elite Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools including ActiveTarget live sonar, Active Imaging, FishReveal and preloaded C-MAP Contour + charts all at a more affordable price than other fishfinder/chartplotters in its category

Sonar

Power Output Max 1 kW RMS
Sonar Connections One connector for Active Imaging SideScan, DownScan and CHIRP
Active Imaging 3-in-1 DownScan Imaging at 455 kHz: Max 300 ft / 91 m: SideScan Imaging at 455kHz: Max 300 ft./91 m to each side
CHIRP Sonar High Range (160-240kHz)/200 kHz: 1000 ft / 305 m
CHIRP Sonar Med Range (60-100kHz)/83 kHz: 1000 ft / 305 m
CHIRP Sonar Low Range (40-60kHz)/50 kHz: 3000 ft / 900 m
Available Sonar Frequencies Low/Mid/High CHIRP, 50/83/200 kHz Broadband, 455/800 kHz SideScan/DownScan imaging
Depth Alarm Yes
Shallow Alarm Yes
Temperature Readings Yes
Transducer Type Single 9-pin Connection; Multiple Transducer Selections from Lowrance and Airmar

Environmental

Operating temperature range -15C to +55C (5F to 131F)
Storage temperature -20C to +60C (4F to 140F)
Waterproof rating IPX6 and IPX7

Electrical

Supply voltage 12 V DC (10 – 17 V DC min – max)
Recommended fuse rating 3 A
Power consumption (maximum) 28 W (2 A at 13.8 V DC)

Display

Resolution 800 x 480 pixels
Viewing angles in degrees 50 top, 60 bottom, 70 left and right
Brightness > 1200 nits
Touch screen Multitouch

Physical

Weight (display only) 0.9 kg (1.9 lbs.)
Compass Safe Distance 0.5 m (1.6 ft.)

Interface/Connectivity

NMEA 2000 1 port (Micro-C connector)
Data card reader 1x slot (microSD, SDXC)
Ethernet 1 port, (5-pin Ethernet connector, 100Base-T)
Sonar 1 port (9-pin connector)
WiFI Internal 802.11b/g/n : No wireless networking between units
Bluetooth 4.0 with support for Bluetooth Classic
GPS 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS
