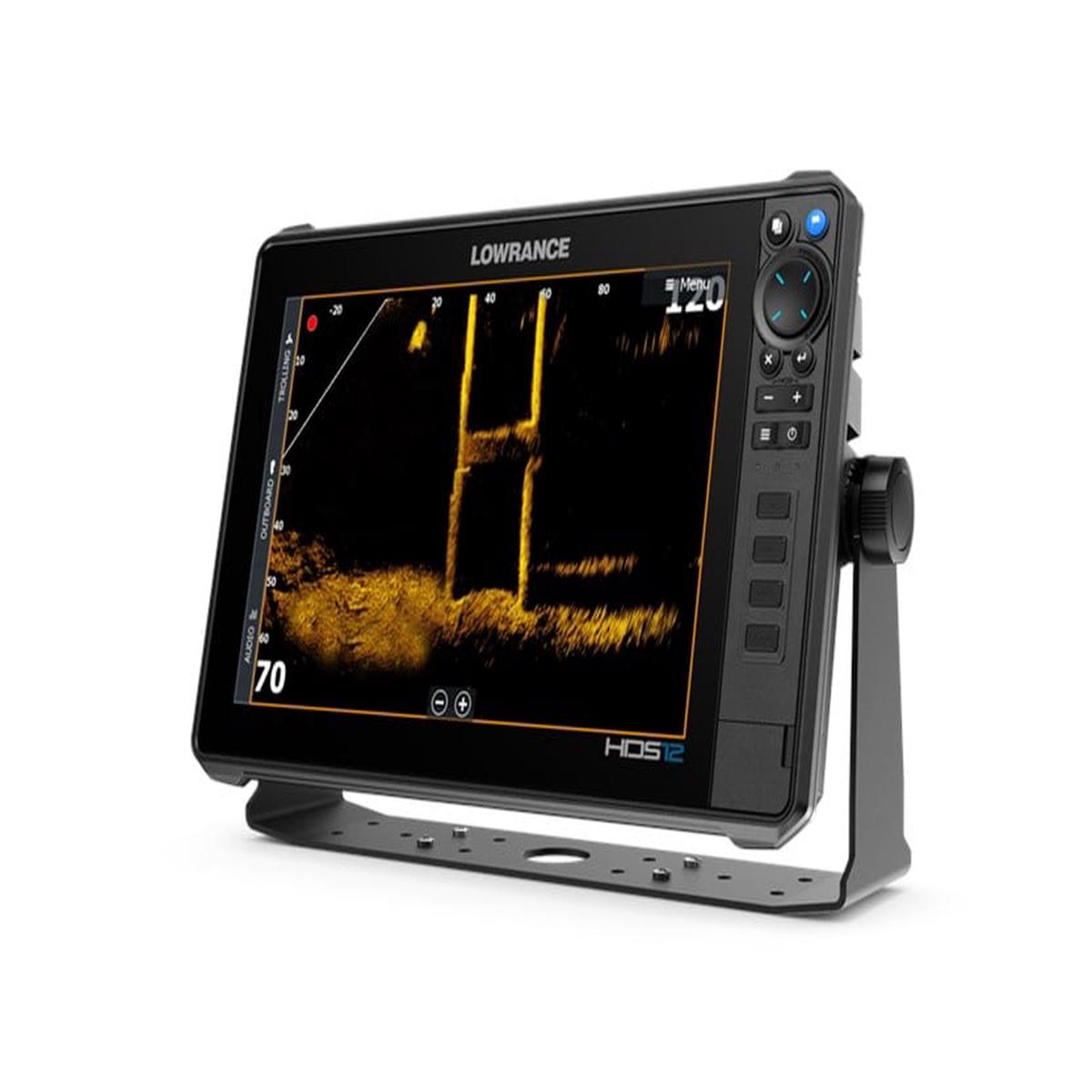

Lowrance HDS PRO 12 No Transducer (ROW) offers the highest-accuracy scanning capabilities with its advanced sonar technology. From detailed bottom composition and structure to fish-holding areas, the HDS PRO series allows you to visualize underwater with greater clarity than ever before.

Lowrance HDS PRO is the next step in sonar technology, with a host of enhanced features across the board. It offers access to ActiveTarget2 Live, HD Active Imaging, FishReveal* sonar functions, and a dual-channel 1 kW CHIRP sonar.

Lowrance HDS PRO offers full support for ActiveTarget2 Live – the newest, most advanced version of the award-winning ActiveTarget Live sonar. ActiveTarget2 Live takes fishing to an unprecedented level, with increased range and remarkable separation of objects and structures. HDS PRO is compatible with two ActiveTarget2 Live sonars, granting you an impressive 270 Scout Wide view around your vessel, a 180 view backwards and forwards, or the ability to view both Scout and Forward on the same display.

The HDS PRO 12 No Transducer offers Active Imaging HD sonar transducers for unprecedented search precision. With mega CHIRP SideScan (1075kHz), mega CHIRP DownScan (1225kHz), and top-tier 2D CHIRP sonar, fish spotting has never been easier with FishReveal SideScan, requiring a Lowrance S3100 sonar module and compatible Active Imaging HD transducer.

The Lowrance HDS PRO is a powerful and high-performing device with an even stronger processor. It offers the most extensive Lowrance fishing system available, always running quickly and smoothly while using multiple navigation and sonar views simultaneously. In addition to its wide range of sonar functions, it can be integrated with autopilots, electric Lowrance or Motorguide trolling motors, VHF radios, radars, audio systems, and Power Pole anchors.

HDS PRO is equipped with the latest navigation features from Lowrance, including C-MAP Easy Routing and Navionics Autorouting plus access to C-MAP Genesis Live charts in real-time. As an added bonus, the built-in Genesis Live mapping tool allows users to create maps of their favorite fishing spots and bodies of water where detailed maps do not exist. These can be recorded at up to 15-cm precision, on both new or pre-existing C-MAP map data cards, and viewed on-screen from your sonar.

High-resolution SolarMAX HD screen offers unparalleled image quality, unbeatable visuals of fish and bottom structures, and easy viewing of chart data and sonar info from any angle – even in the brightest sunlight and through polarized lenses.

The HDS PRO device offers multi-touch functionality and is ideal for fishing, boating, and navigating. Its user-friendly design makes it easy to access all the data needed to maintain a safe and enjoyable experience on the water. The display enables you to view maps, depths, locations, radar, battery level and any other vital data related to your journey with just a glance.

Key features:
12 high-resolution SolarMAX HD multi-touch screen, with the widest possible viewing angle the screen can also be viewed in direct sunlight or through polarized sunglasses
Active Imaging HD 3-in-1 & 2-in-1 (CHIRP/SideScan/DownScan Imaging) compatible
Active Imaging FishReveal HD 3-in-1 compatible (FishReveal SideScan requires an S3100 sonar module sold separately)
ActiveTarget2 compatible (also supports the previous generation of ActiveTarget Live transducers)
Supports the use of two ActiveTarget2 live sonars on one screen
Scout, Ghost 360, and SideScan overlays on top of the chart view
Smart FishReveal function in the DownScan and SideScan* views (*FishReveal SideScan requires an S3100 sonar module sold separately and an Active Imaging FishReveal HD transducer)
True dual-channel CHIRP
Built-in CHIRP and Broadband Sounder
Improved surface noise reduction allows you to see more fish near the surface
Expanded map and sonar views
Real-time C-MAP Genesis Live depth mapping
C-MAP Easy Routing and Navionics Autorouting compatible
Chart options include C-MAP DISCOVER, C-MAP REVEAL, and Navionics charts, for example
The system can be controlled using the multi-touch screen or quick-access keyboard
User-programmable hotkeys (in the 10, 12, and 16 models)
Lowrance Outboard Pilot autopilot control and management from the touchscreen
Lowrance Ghost electric trolling motor control and management from the touchscreen
MotorGuide Xi3 and Xi5 electric trolling motor control and management from the touchscreen
Power-Pole anchor control and management from the touchscreen
Lowrance HALO radar support
Lowrance LINK VHF radio support
NMEA 2000 outboard motor support
Wireless Wi-Fi and Bluetooth connections
Smartphone notifications
GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
Easy flush-mount or stand
USB charging port (only on the 12 and 16 models)
HDMI port (only on the 12 and 16 models)
NMEA 2000 Micro-C port
2 x 9-pin sonar port
2 x Ethernet data transfer port
2 x micro SD card slot (max. 32 GB)
Internal memory 8 GB
Storage space: 3 000 waypoints, 100 routes, and 100 tracks
Waterproofing class IPX7
Screen resolution 1 280 x 800
Screen brightness > 1 200 Nits
Operating temperature range -15…+55 C
Operating voltage 12V DC (10.817 VDC)
Typical consumption 2.3 A @ 13 VDC
Max. consumption 3.6 A @ 13 VDC

Included in the package:
12 HDS PRO combination device
Screen protector
Mounting stand
Power cable and fuse
