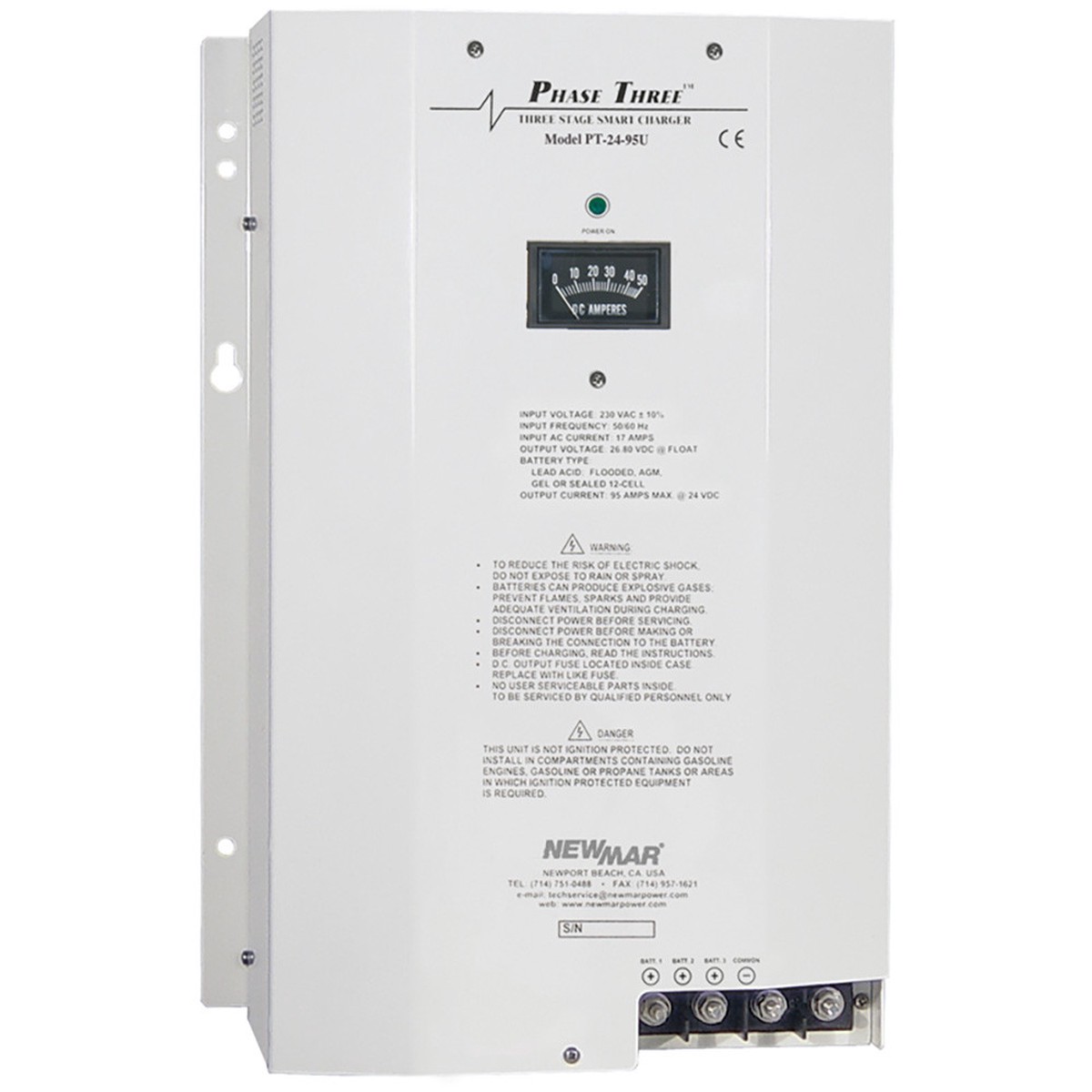

PT-24-95U Battery ChargerSmart marine battery charging technology for 24-volt systems aboard workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.Features:24-volt modelSmart circuitry provides three-stage charging bulk, absorption, floatGel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltagesMultiple isolated output banks; ammeter indicates total output currentThe optional sensor adjusts output voltage based on battery temperatureCurrent limiting prevents damage from overloadingUse as a power supply; can power loads without a battery in lineBuilt to last rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitryProtection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip ShieldInstall in conjunction with PT-MCU for additional control and monitoringABS-type approval for battery charging and power suppliesSpecifications:Input VAC (50-60 Hz.): 90-264Input Amps @ Full Load: @ 115 VAC: 26, @ 230 VAC: 14Power Factor: .98@115V and .95@230VMax Output Amps: 95Output Banks: 3Battery Capacity (Amp-Hours): 180 950Operating Temp. Rating Reference: T-5Case Size Reference: A-5Case Size (H x W x D): 17.5E x 12 x 7.2E inches (44.5E x 30.5 x 18.3E centimeters) *Note with Dripshield installed E add 2 (5.08 cm) to height and 1 (2.54 cm) to depthWeight Lbs./Kg: 24.5/11Optional Temp. Sensor Model: TCS-12/24 Remote Panel Model: RPCompliance Reference: EN, CE, ABSTemperature Rating References:Temperature: -20 degrees C to +70 degrees CDerate Linearly From 100% @ 50 degrees C to 50% @ 70 degrees CNominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation):Gel-Cell: 28.0 VDC Charge @ 50% load and 27.2 VDC Float @ .5 amp loadFlooded/AGM: 28.4 VDC Charge @ 50% load and 26.8 VDC Float @ .5 amp loadCompliance References:UL: UL 1950 (per DNB report)CG: USCG CFR 183.410 (Ignition protected)EN: EN 60335-1CE: Carries the CE markABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13.Options:Remote Panel, model RP, for use with all models except PT-24-20U, PT-24-60, and PT-32-25 (LEDs indicate charger output stage. Manual re-initialization of three-stage charge cycle. With 25 of cable. Panel dimensions: 3 H x 4.75 W)This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:Charger Input – Voltage: 115/230vCharger Output – Amps: 95aCharger Output Voltage: 24vCharging Banks: 3Portable: NoInverter Input Voltage: 115/230vInverter Output Voltage: 24vOutlet Qty: HardwireBox Dimensions: 12″H x 17″W x 25″L WT: 31.5 lbsQuick Guide (pdf)Owner’s Manual (pdf)
