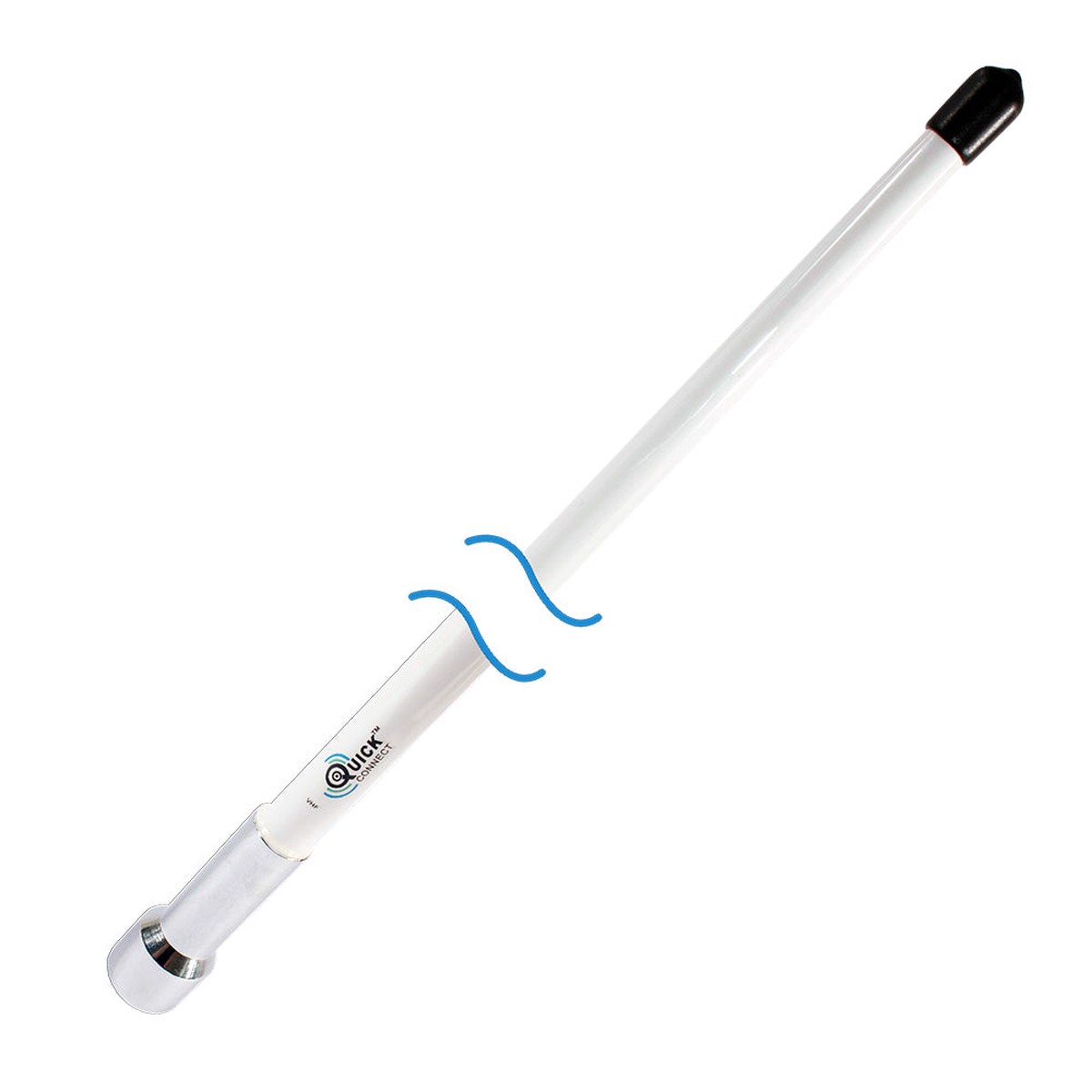

VHF 4′ QuickConnect 3dB for QCM Series Mounts

QuickConnect antennas stem from the popularity of the quick connecting feature on Shakespeare’s high-end Phase III marine antennas, the QuickConnect product line brings you the ease of connecting and disconnecting your marine antenna in a more affordable line-up.

Features:

• QuickConnect System – Screw or unscrew the antenna to disconnect or connect
• Splash Protection Cap – Protects the connector on the mount when the antenna is disconnected
• Centerpin PL-259 Connector – An easy crimp-on connector
• Base connector included for use with QuickConnect mounts only
• Single Section antennas with VSWR of <1.5:1 at 156.8 MHz
• Maximum input power of 50W
• The bandwidth of 5 MHz within 2.0:1 VSWR
• Does not contain a built-in DC ground connection

Specifications:

• Antenna Band: VHF
• Color: White
• Construction: Fiberglass
• Length (Inches): 48″
• Box Dimensions: 3″H x 3″W x 54″L WT: 2.3 lbs
• UPC: 719441173104
