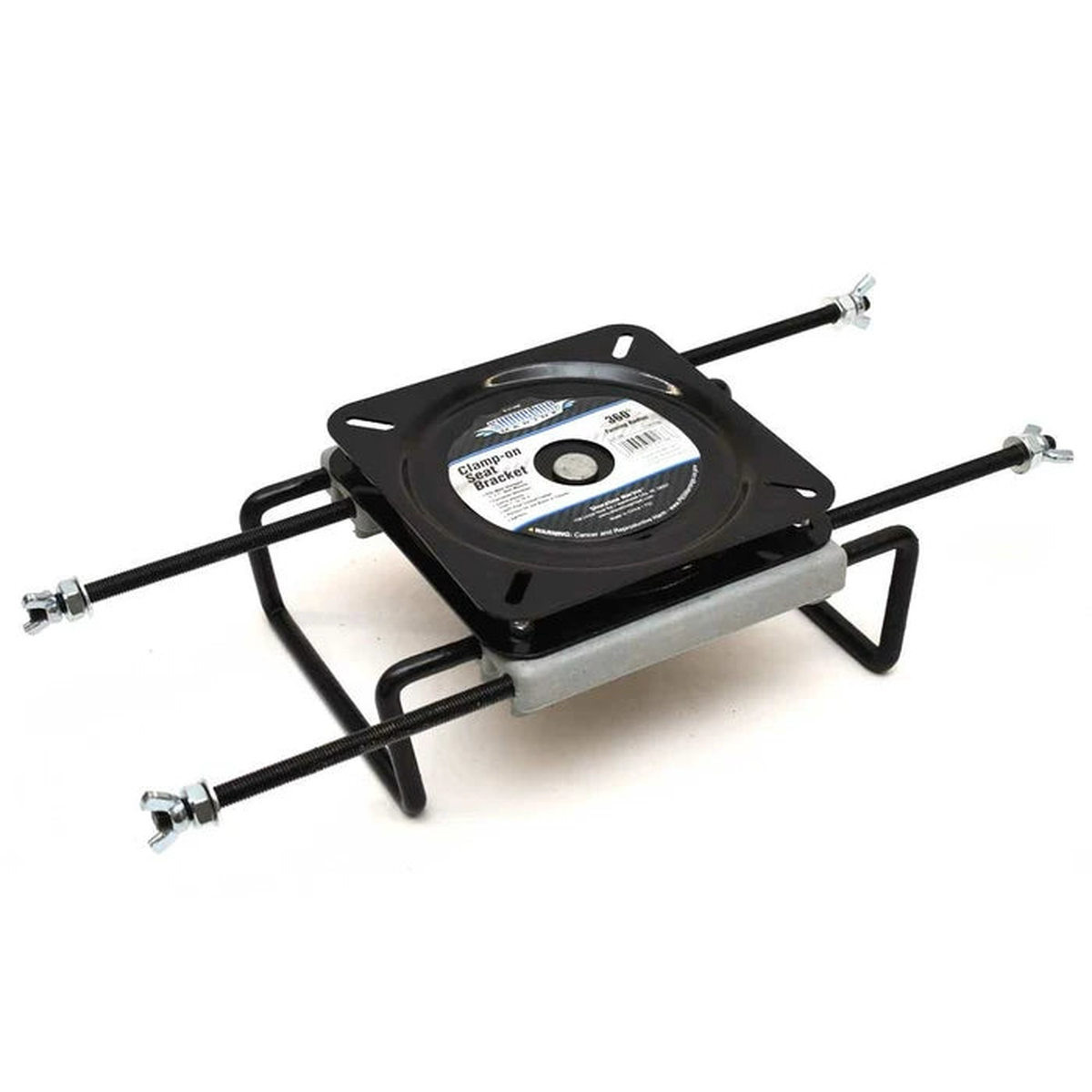

Shoreline Marine SL91388 Seat Bracket Jon Boat W/Swivel

Boat part number 1107975 is a new adjustable clamp-on swivel seat bracket from Shoreline Marine, part number SL91388 . Commonly used on Jon Boats or Canoes, but may be used on other boats.

This seat bracket is constructed out of steel, and measures approximately 21″ L x 7 3/4″ W x 4 3/8″ H overall. Requires an approximate 19″ width when extended and an approximate 8 3/4″ width when condensed. Mounting plate measures approximately 7″ x 7″ overall. Mounts with (4) 1/4″ x 1″ holes set apart 5 3/8″ x 5 3/8″ center to center.

Specifications:

• Boat Manufacturer: Jon Boats or Canoes
• Part Manufacturer: Shoreline Marine
• Part Number: SL91388
• UPC: 013893591388
• Material: Steel
• Color: Black
• Overall Dimensions: 21″ L x 7 3/4″ W x 4 3/8″ H
• Extended Width: 19″
• Condensed Width: 8 3/4″
• Mounting Plate: 7″ x 7″
• Mounts: (4) 1/4″ x 1″ holes set apart 5 3/8″ x 5 3/8″ CTC
