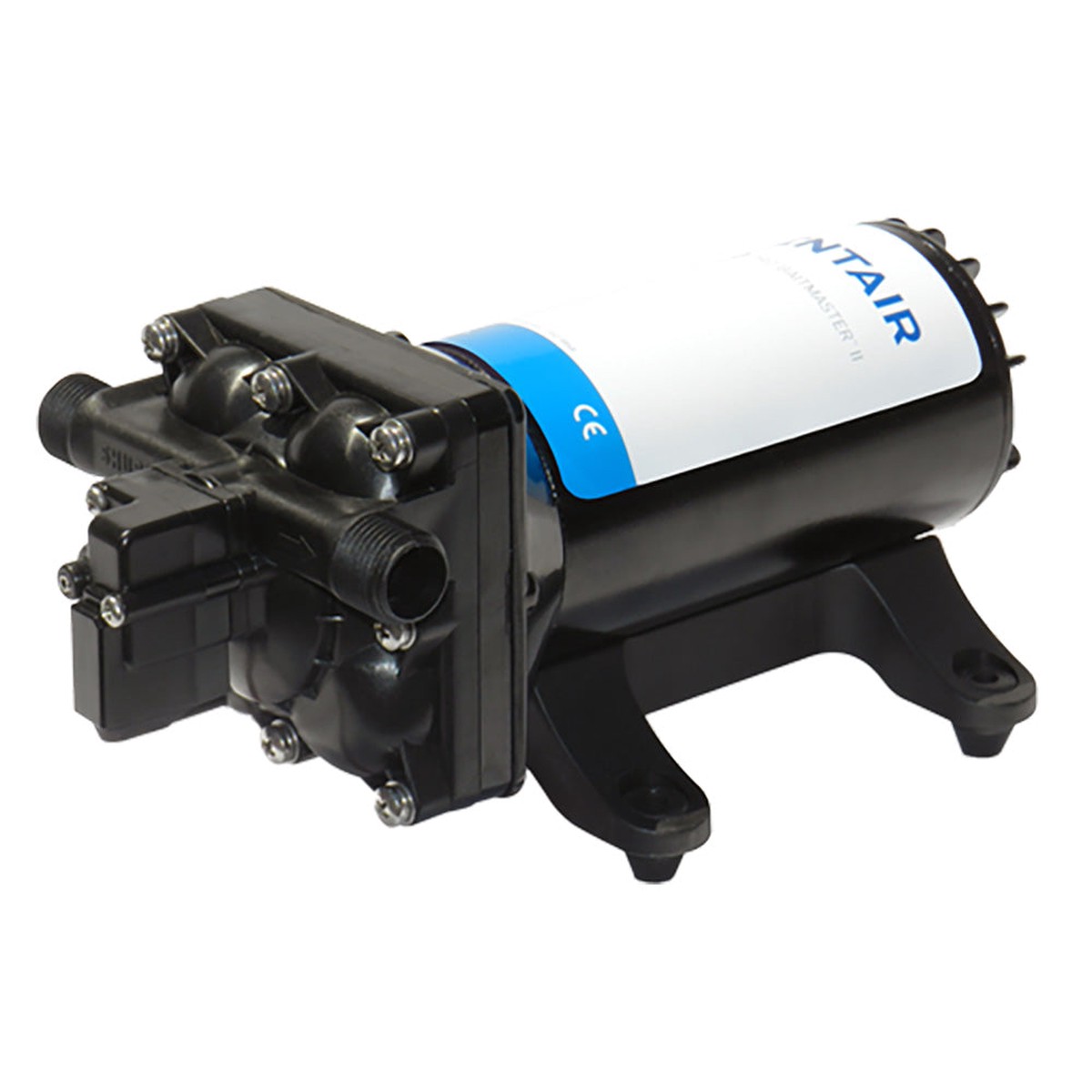

Baitmaster II Livewell Pump – 24 VDC – 4.0 GPM – Rated for Tanks up to 35 Gal – Self-Priming

The Shurflo PRO BAITMASTER II heavy-duty livewell/washdown pump is excellent for live-well or washdown applications in harsh marine environments. The seamless motor shell and sealed switch protect the pump from splashed liquids. Self-priming and can run dry without damage. For tanks sized 35 gallons and under.

Features:

• Sealed switch
• Ignition protected
• Thermally protected
• 4901 replacement
• Sealed motor
• Corrosion-resistant electro-coated motor
• 4 independent chambers
• Built-in check valve
• Co-molded diaphragm
• Self-priming up to 6 feet
• Dry run capability

Specifications:

• Dimensions: 10 x 5 x 4.75 (254 x 127 x 120 mm)
• Voltage: 24 DC
• Flow Rate: 4.0 GPM (15.1 LPM)
• Amps (Max): 4
• Shut-Off Pressure: 45 PSI (3.1 Bar)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Gallons Per Hour: 4.0 GPM
• Volts: 24v
• Box Dimensions: 6″H x 6″W x 12″L WT: 7.95 lbs
• UPC: 752324012022

Quick Guide (pdf)
