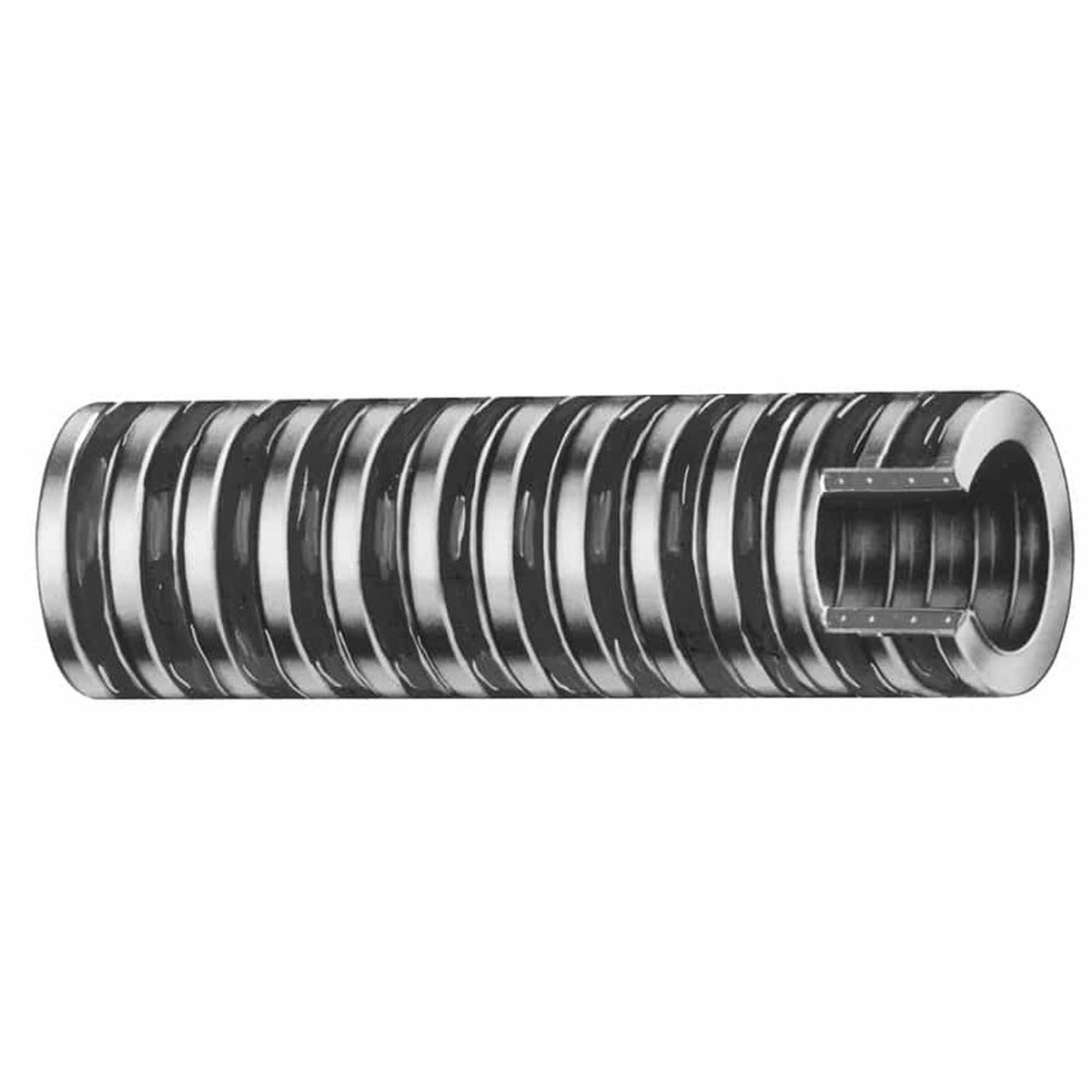

3/4″ Heavy Duty PVC Bilge & Livewell Hose (FDA) – Clear with Black Helix – Sold by the Foot

Trident Smooth extra heavy wall vinyl (FDA) well hose. All clear (see thru) with black helix. Excellent durability, flexibility & bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs are required.

Features:

• Sold by the foot
• Flexible, but the 147 series is less flexible than the 149 series of hoses

Application:

• Bilge and live well hose

Specifications:

• Tube & Cover: Clear vinyl reinforced with black helix
• Color: Clear with black helix
• Reinforcement: PVC Helix
• Temperature Range: 10F-120F (-12C-49C)
• Inner Diameter: (inch) 3/4″ / (mm) 19
• Outer Diameter: (inch) 0.968″ / (mm) 24.6
• Working Pressure: (Psi Vac In./Hg) 28
• Weight: (Lb./ 50 ft.) 11 / (Kg/m) 0.33
• Bend Radius: (inch) 2.25″ / (mm) 57.2

*Burst Pressure is 4 x Working Pressure

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• ID Diameter (inches): 3/4″
• Length (Feet): Sold By The Foot
• Box Dimensions: 1″H x 1″W x 6″L WT: 0.18 lbs
