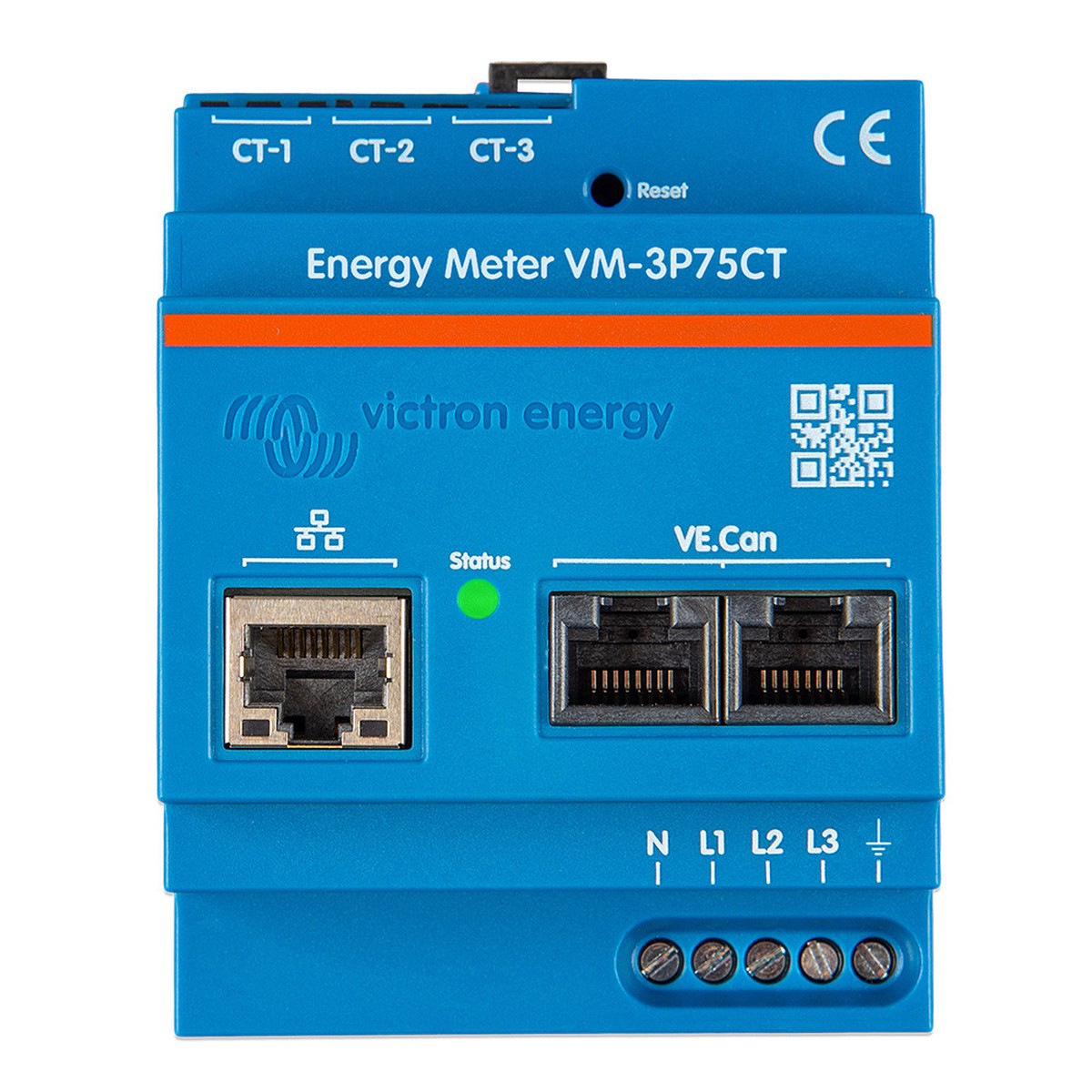

Energy Meter VM-3P75CT Single + 3-PhaseThe Victron VM-3P75CT energy meter is a standard device to measure the power and energy of single- and three-phase applications and calculates each phase’s power values and broadcasts this over VE.Can or Ethernet with a high rate. It has built-in Ethernet and VE.Can ports for connecting to a GX device and the split-core current transformers enable easy and quick installation without modifying existing wiring.The energy meter works out of the box (the firmware may need to be updated; details can be found in the Firmware Updates chapter) as a grid meter for systems with a MultiPlus and Quattro. Configuration (via VictronConnect) is only required for changing the role and manual IP configuration, rather than the default DHCP. Its data is displayed on a GX device such as the Cerbo GX or Ekrano GX, as well as in VictronConnect and the VRM Portal.Specifications:Voltage connection: DirectInput voltage range L-N: 85 to 265VACInput voltage range L-L:150 to 460VACFrequency: 50/60HzCurrent connection: Via current transformers (included – wire length 640mm (25.2in)Rated current: 75AVE.Can communication port: Two RJ45 connectors (VE.Can terminators included)Ethernet communication port: One RJ45 connector, Modbus UDPRefresh rate: 100msType: Self-power supply via L1-NSwitch or circuit breaker: Required as a means of a disconnecting device – not includedExternal fuse [1]: Required in the neutral conductor – 500mA, not includedConsumption: 1.45W / 3.1VAFrequency: 50/60HzMaterial & Color: Polycarbonate, blue (RAL5012)Voltage connection: Screw terminals 0.25 – 1.5mm2 (24 – 16AWG)Current transformer connection: Pluggable screw terminals (included)Protection category: IP20Weight: 370g (including packaging)Dimensions: 90 x 71 x 59mm (3.5 x 2.8 x 2.3in)Indoor/outdoor usage: Indoor onlyOperating temperature: From -10 to +55 CStorage temperature: From -20 to +70 CRelative humidity: < 90% non-condensingAltitude: 2000m (6562ft)Mains supply voltage fluctuations: 0.1VinOvervoltage category: Cat. IIIPollution degree: 2What's In The Box?Victron VM-3P75CT with 3 input terminal blocks3x Split-core current transformer, wired ready for connectionWire length: 640mm (25.3")VE.Can terminators (2-pieces)Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)
